Overview
This product has a 2-4 week lead time. Please contact america@robotis.com for more information.
Features

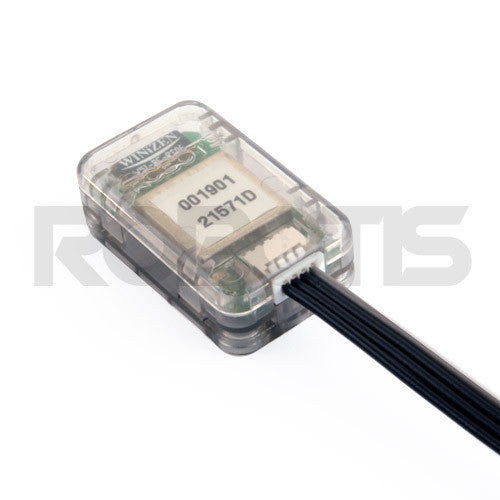

BT-210 is a device that enables serial communication (UART) via Bluetooth communication.
BT-210 has a case that protects the circuits and a connector-type cable to connect the device onto the robot.
Package Components
| BT-210 (120mm cable included) | 1 |
|---|
H/W Specification
| Weight | 4.51g |
|---|---|
| Dimensions | 18mm x 30mm x 9.1mm |
| Bluetooth Specifications | Bluetooth Specification 2.1 Support |
| Effective Communication Range | 10m |
| Bandwidth Frequency | 2.4 GHz ISM Band |
| Bandwidth | MAX 250kbps |
| Default Baud Rate | 57600bps |
| Sensitivity | -81dBm (Typical) |
| Transmit Power | 4dBm (Typical) |
| Bluetooth Profile Supported | SPP (Serial Port Profile) |
| Operational Voltage | 3.3V |
| Consumed Current | 48mA (Max) |
| Operating Temperature | -40C ~ 85C |
| Baud rate Range | 1200bps ~ 400000bps |
| Antenna | Chip Antenna |
| Interface | UART (3.3V Level) |
| Conducted Net Power | -6 ~ 4dBm(Class 2) |
Compatible Products
Controller : CM-530 (wireless control wireless downloading)
CM-510 CM-700 (wireless control / requires firmware update)
Caution
Only contains 1 slave module for assembling onto the robot.
The default pin code is 0000.
Please refer to the e-Manual for more information on how to change the code.
Can be used to control the robot with devices that support Bluetooth communication.
* NOT Compatible with :
Remote controller : RC-100 RC-100A
Controllers : CM-100 CM-5 CM-2+
